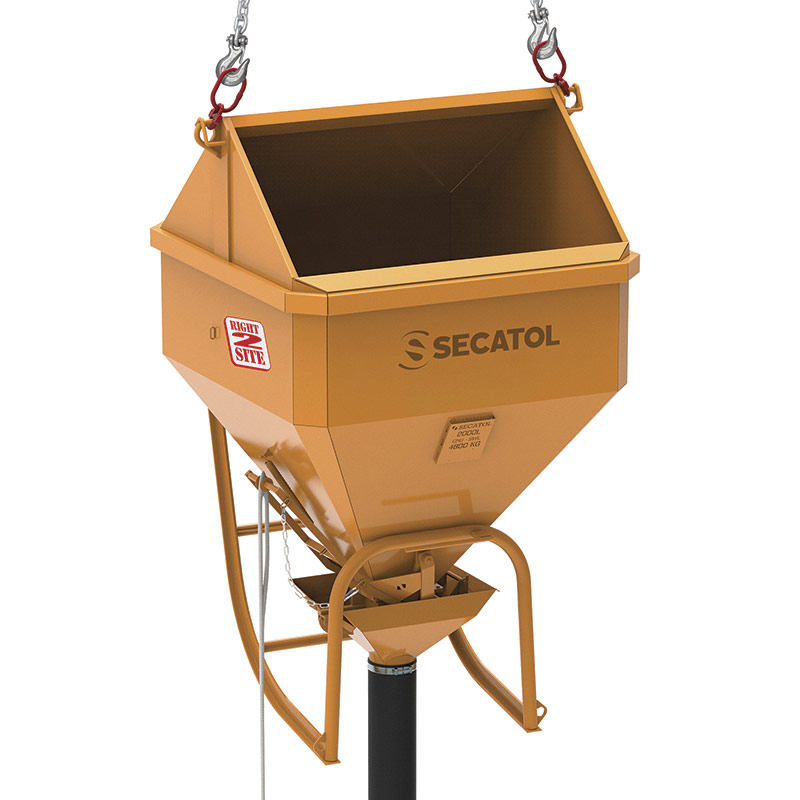

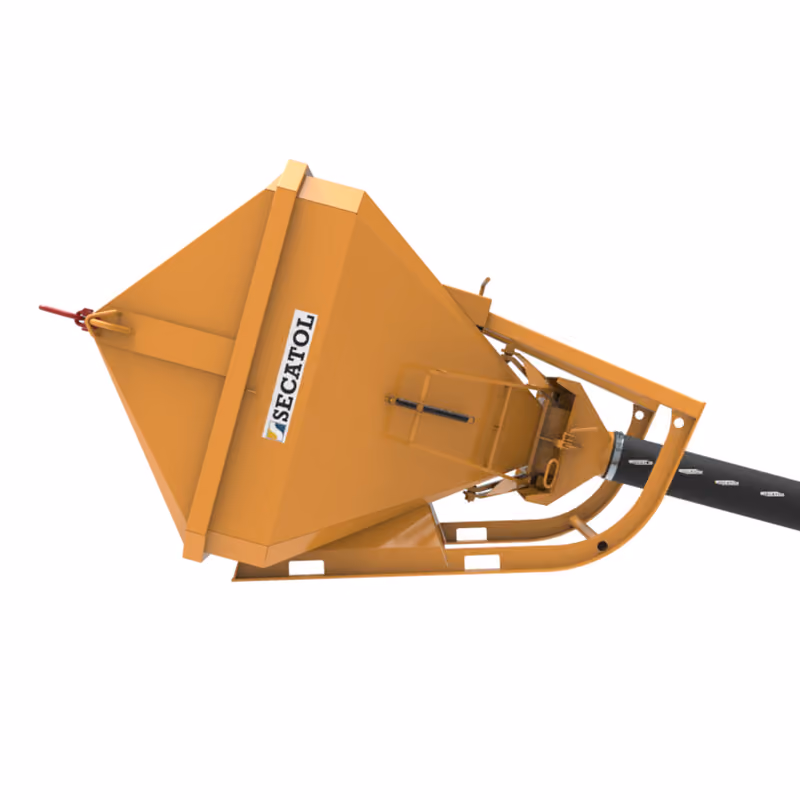

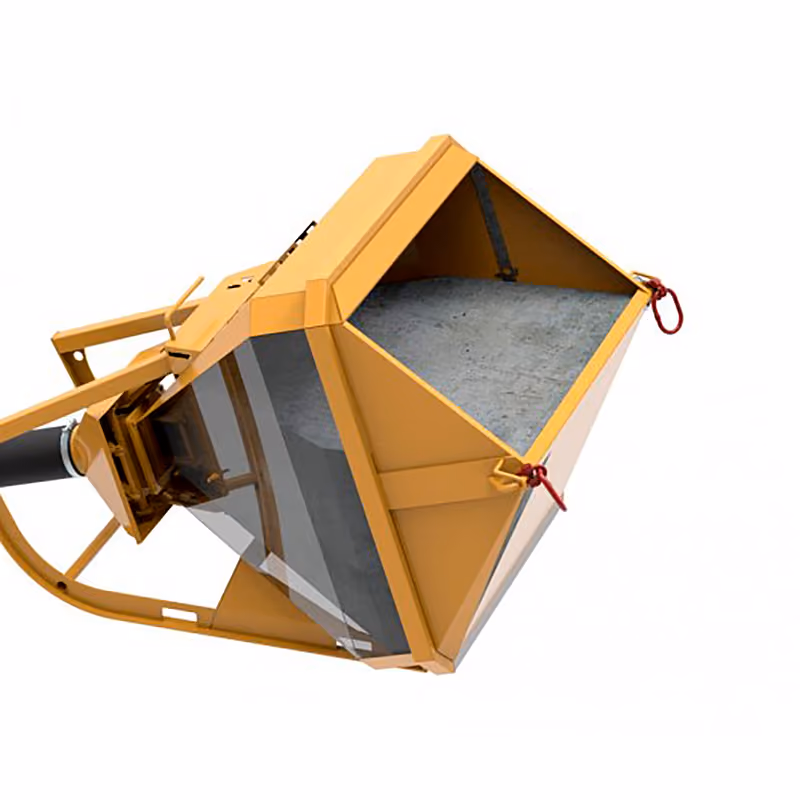

Laydown Concrete Skip with TI mechanism

Laydown skip with incorporated bale arm in the body of the skip to improve safety on building sites.

TI Mechanism: (European patent)

  • Opening of the hatch by lever and automatic closing by spring.
  • Enclosed funnel to prevent leakage when pouring concrete.
  • Remove funnel for easy cleaning (without the need of tools).
  • Gate made of steel which is highly resistant to abrasions, to improve its lifetime.
  • Easily change diameter or length of pipe.
  • Pipes available in several diameters: Ø90; Ø150; Ø200; Ø250

Lifting device: Fixed bale arm. Handling with 2 chain slings fitted on the lateral eyes of the skip (chain slings not provided with the skip).

Advantages: Traditional moving bale arm removed to prevent pinching and crushing risks. It also reduces the weight of the skip.

Discharge mode: Central

Gate control: Lever

Sizes available: 2000lt, 1500lt, 1000lt, 750lt, 500lt.

From 1000L capacities, skips are fitted with the gate auxiliary control option to ease the gate closing.

New features of the TIC PF V2 model:

  • Reinforced base to limit deformation of the tank.
  • Integration of fork passages in the base to enable forklift handling (truck loading / unloading).
  • Rule for indicating the filling level in the bucket.
  • Storage for the hose clamp on the front of the bucket.

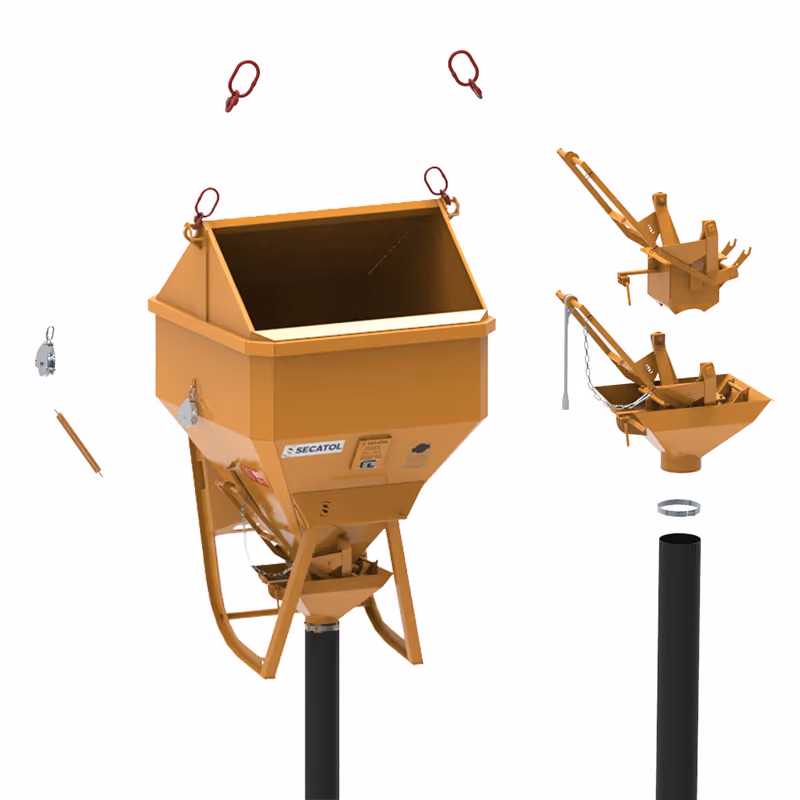

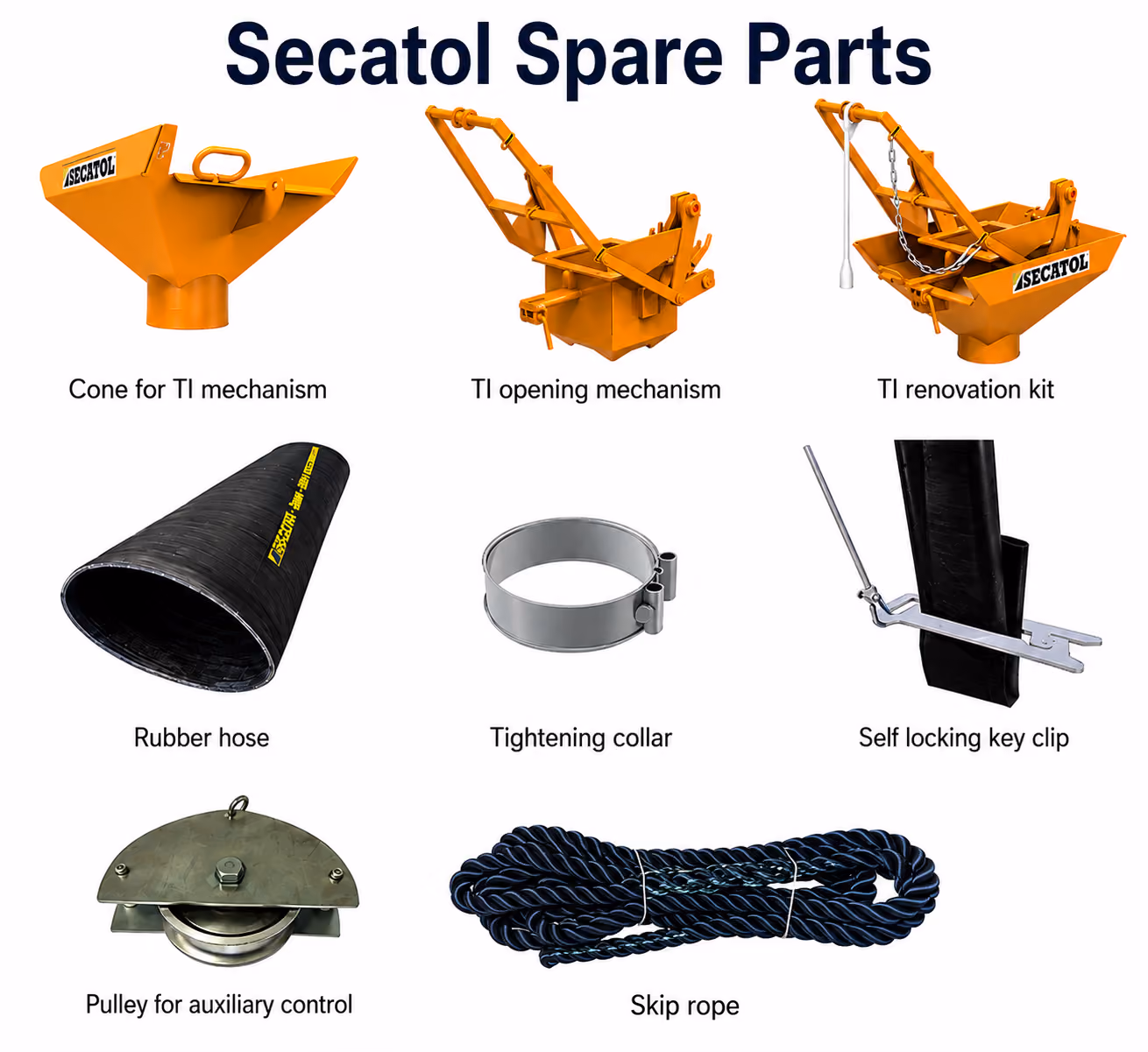

Set of Spare Parts:

  • Cone for IT mechanism
  • IT opening mechanism
  • IT renovation kit
  • Rubber hose
  • Tightening collar
  • Self-locking pipe clip
  • Pulley for auxiliary control
  • Control cord - ø18mm x 5m
