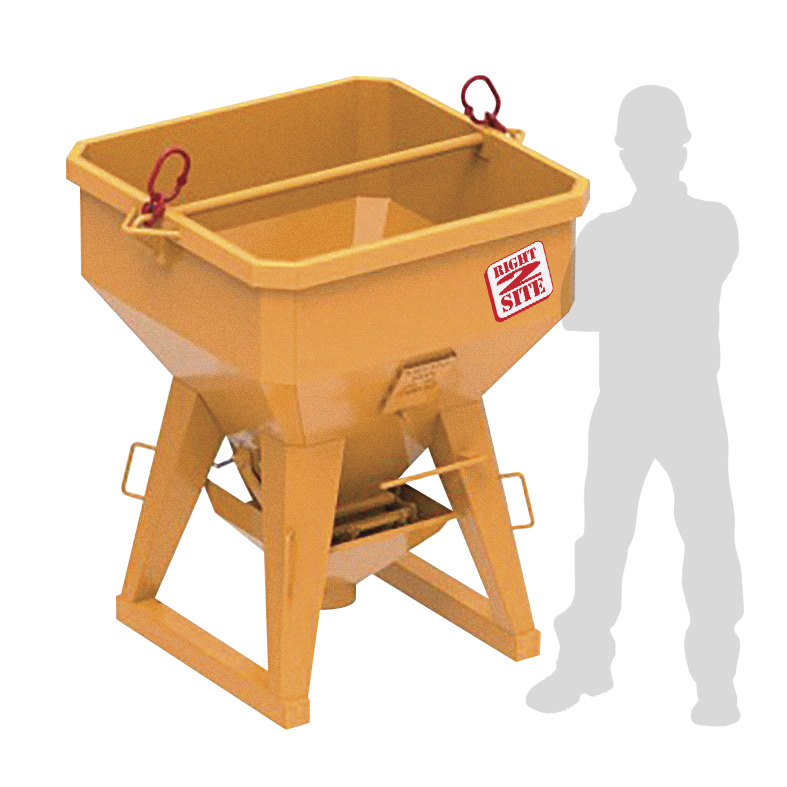

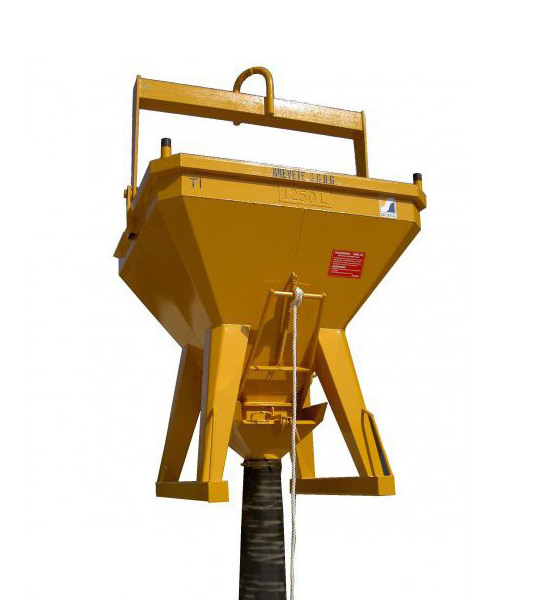

Upright Concrete Skip with TI mechanism

Upright skip with incorporated bale arm in the body of the skip to improve safety on building sites.

Type of mechanism: TI mechanism (European patent). Very enclosing cone to get back cement grout leakage when pouring concrete. Tool less removable cone for easy cleaning. The gate is made of abrasive high resistance steel to improve its lifetime.

Presentation: This column skip is designed to enable concrete to be poured into narrow shuttering or columns.

Means of handling: This skip is lifted by chains (not included).

Discharge type: Centre.

Gate operation: By means of a nylon rope attached to a spring return lever.
Skips with capacities of 1000L and above are fitted with the auxiliary gate closing option to ease the gate closure.

Characteristics:Lifting pointsSkip belt in U profile fora greater strengthDelivered with a 3 meter long hose, Ø 200m (as option Ø 90, 150 or 250 mm available)

Sizes available: 1500lt.


Comparison with traditional systems:

CharacteristicsTraditional SystemsGeoplast Reusable Formwork
Hindrance-Modular system
Waterproof10%100%
ResistanceLimitedUp to 60 kN/m2
Concrete adherenceRequires dismantling agentsBeing made of plastics, GEOTUB PANEL does not stick to concrete
Protection10%The best protection for the columns until the end of the operations
PlumbingRequires long operations and it is often inaccurateQuick and accurate thanks to the external structure that allows easy shoring and plumbing
Dismantling agentsRequiredNot required. Everitt Site Supplies recommend 'Kleen Kote' protection and release formula to maintain your forms in top condition.
